Product Details
Synonyms
Her2 & ErbB3, HER2 & HER3
Source

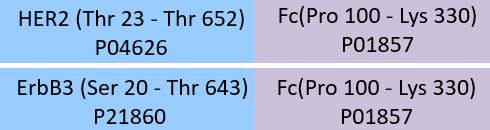

Human Her2 & ErbB3 Protein, Fc Tag&Fc Tag (HE2-H5254) is expressed from human 293 cells (HEK293). It contains AA Thr 23 - Thr 652 & Ser 20 - Thr 643 (Accession # P04626 & P21860).
Predicted N-terminus: Thr 23 & Ser 20
Request for sequenceMolecular Characterization

Other Tags and Version Biotin & Other Labeled Version
Human Her2 & ErbB3 Protein, Fc Tag&Fc Tag, produced by co-expression of HER2 and ErbB3, has a calculated MW of 95.9 kDa (HER2) and 94.9 kDa (ErbB3). Subunit HER2 is fused with a human IgG1 Fc fragment at the C-terminus and subunit ErbB3 is fused with a human IgG1 Fc fragment at the C-terminus. The protein migrates as 110-130 kDa when calibrated against Star Ribbon Pre-stained Protein Marker under reducing (R) condition (SDS-PAGE) due to glycosylation.
Endotoxin
Less than 1.0 EU per μg by the LAL method / rFC method.
Purity
>90% as determined by SDS-PAGE.
Formulation
Lyophilized from 0.22 μm filtered solution in 50 mM Tris, 100 mM Glycine, 25 mM Arginine, 150 mM NaCl, pH7.5 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Shipping and Storage
This product is shipped at ambient temperature.
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
ACRO Quality Management System
Kunden haben auch angesehen
Data Display
SDS-PAGE

Human Her2 & ErbB3 Protein, Fc Tag&Fc Tag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 90% (With Star Ribbon Pre-stained Protein Marker).
SEC-MALS

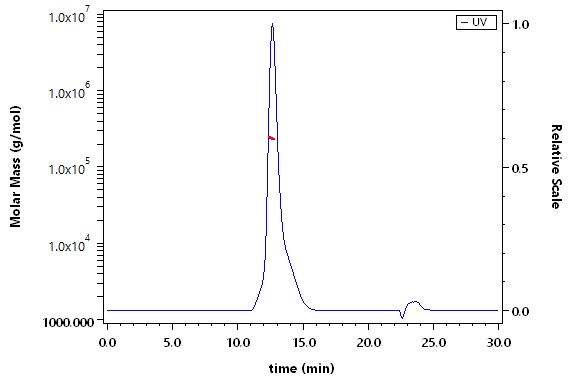

The purity of Human Her2 & ErbB3 Protein, Fc Tag&Fc Tag (Cat. No. HE2-H5254) is more than 85% and the molecular weight of this protein is around 200-250 kDa verified by SEC-MALS.
Report
Bioactivity-ELISA

Immobilized Human Her2 & ErbB3 Protein, Fc Tag&Fc Tag (Cat. No. HE2-H5254) at 1 μg/mL (100 μL/well) can bind Trastuzumab with a linear range of 0.2-4 ng/mL (QC tested).
Protocol
Immobilized Human Her2 & ErbB3 Protein, Fc Tag&Fc Tag (Cat. No. HE2-H5254) at 1 μg/mL (100 μL/well) can bind Monoclonal Anti-HER3 Antibody, Mouse IgG2a with a linear range of 0.1-4 ng/mL (Routinely tested).
Protocol

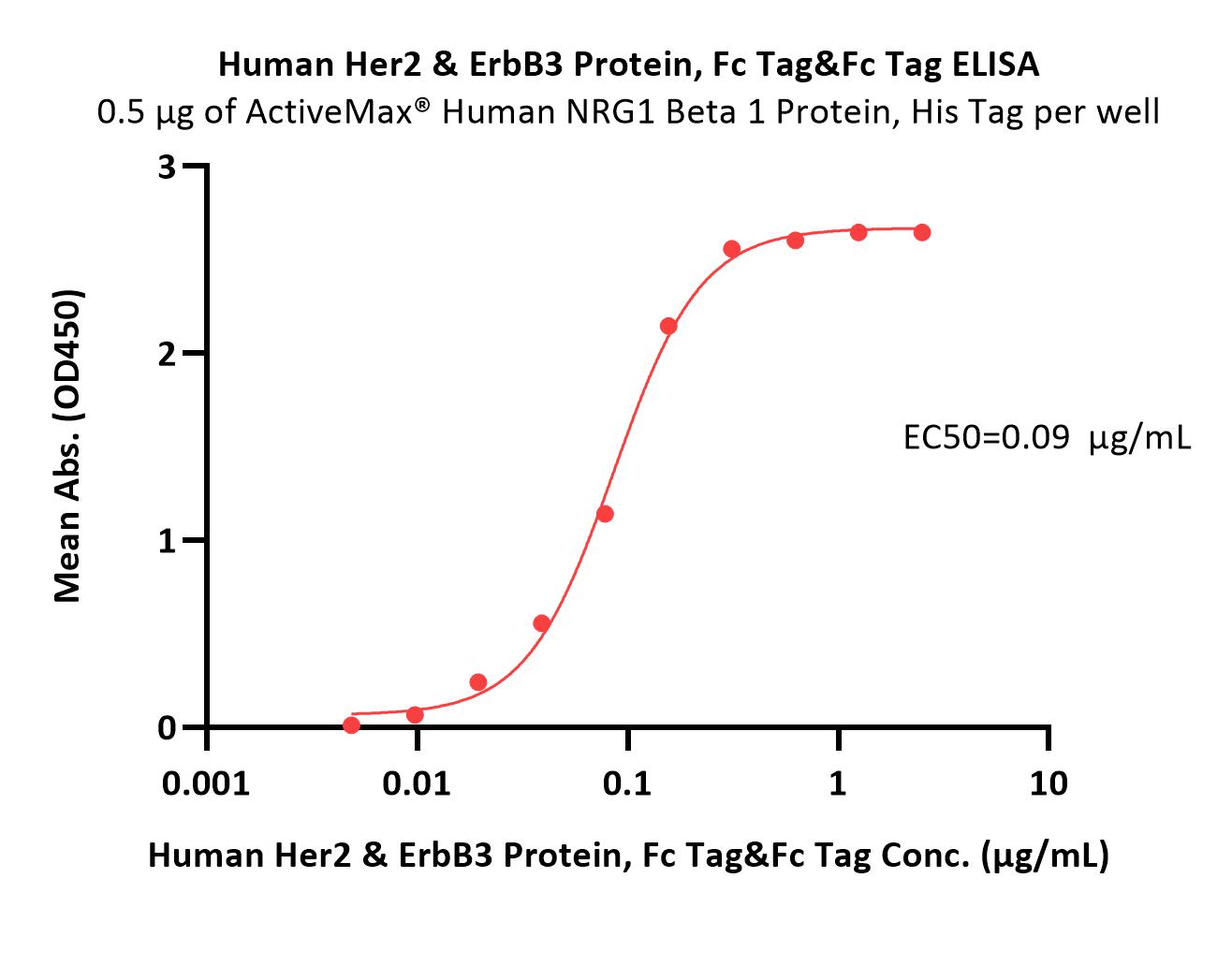

Immobilized ActiveMax® Human NRG1 Beta 1 Protein, His Tag (Cat. No. NR1-H5246) at 5 μg/mL (100 μL/well) can bind Human Her2 & ErbB3 Protein, Fc Tag&Fc Tag (Cat. No. HE2-H5254) with a linear range of 0.02-0.156 μg/mL (Routinely tested).
Protocol
Bioactivity-SPR

Human NRG1 Beta 1, Fc Tag, premium grade (Cat. No. NR1-H5268) immobilized on CM5 Chip can bind Human Her2 & ErbB3 Protein, Fc Tag&Fc Tag (Cat. No. HE2-H5254) with an affinity constant of 114 nM as determined in a SPR assay (Biacore 8K) (Routinely tested).
Protocol
