Human PD-1 Protein, His Tag (Nanoparticle)

Related Products: TR-FRET kit FRT-P019, Cell line CCHO-ATP266 and SCJUR-STF063 and SCJUR-STF064, Bridging ELISA Kit BIS-A008
Product Number/Spec
Price
Availability
Menge
PD1-H52H2-100ug
$980.00
In Stock - Delivery in 1-2 business days
PD1-H52H2-500ug
$3,655.00
PD1-H52H2-1mg
$6,470.00
In Stock - Delivery in 1-2 business days
PD1-H52H2
Product Amount :
$ 0
0
Add to Cart
New Product Suggestion Request Quote
Contact Us
Contact Us
Product Amount:
$ 0
0
Add to Cart
  • Product Details
  • Data Display
  • Reviews & Citations
  • Important Statement
  • Resources
Synonyms

PDCD1, PD1, CD279, SLEB2

Source

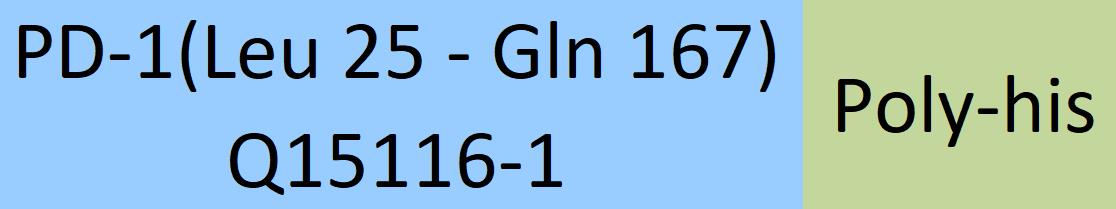

Human PD-1 Protein, His Tag (PD1-H52H2) is expressed from human 293 cells (HEK293). It contains AA Leu 25 - Gln 167 (Accession # Q15116-1).

Predicted N-terminus: Leu 25

Molecular Characterization

Human PD-1 Protein, His Tag is designed and expressed as nanoparticles of approximately 25 nm diameter by displaying PD-1 ECD in native conformation. The nanoparticles each was coated with an average of 180 PD-1 ECD.

The nanoparticle technology allows directional and high-density display of human PD-1 on the surface of nanoparticles, thus greatly enhances the immune response in vivo to otherwise poorly immunogenic epitopes.

This protein carries a polyhistidine tag at the C-terminus. The protein has a calculated MW of 47.1 kDa. The protein migrates as 55-65 kDa under reducing (R) condition (SDS-PAGE) due to glycosylation.

Endotoxin

Less than 0.5 EU per μg by the LAL method / rFC method.

Purity

>90% as determined by SDS-PAGE.

Formulation

Lyophilized from 0.22 μm filtered solution in PBS with glycine and sodium citrate, pH8.0 with trehalose as protectant.

Contact us for customized product form or formulation.

Reconstitution

Please see Certificate of Analysis for specific instructions.

For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.

Shipping and Storage

This product is shipped at ambient temperature.

For long term storage, the product should be stored at lyophilized state at -20°C or lower.

Please avoid repeated freeze-thaw cycles.

This product is stable after storage at:
  • -20°C to -70°C for 12 months in lyophilized state;
  • -70°C for 3 months under sterile conditions after reconstitution.

Background Introduction

Programmed cell death protein 1 (PD-1) is also known as CD279 and PDCD1, is a type I membrane protein and is a member of the extended CD28/CTLA-4 family of T cell regulators. PDCD1 is expressed on the surface of activated T cells, B cells, macrophages, myeloid cells and a subset of thymocytes. PD-1 has two ligands, PD-L1 and PD-L2, which are members of the B7 family. PD-L1 is expressed on almost all murine tumor cell lines, including PA1 myeloma, P815 mastocytoma, and B16 melanoma upon treatment with IFN-γ. PD-L2 expression is more restricted and is expressed mainly by DCs and a few tumor lines. PD1 inhibits the T-cell proliferation and production of related cytokines including IL-1, IL-4, IL-10 and IFN-γ by suppressing the activation and transduction of PI3K/AKT pathway. In addition, coligation of PD1 inhibits BCR-mediating signal by dephosphorylating key signal transducer. In vitro, treatment of anti-CD3 stimulated T cells with PD-L1-Ig results in reduced T cell proliferation and IFN-γ secretion. Monoclonal antibodies targeting PD-1 that boost the immune system are being developed for the treatment of cancer.
